ZPH3-3213

Name: ZPH3-3213
Brand: BAUMER
SKU: A0278619
Availability: PreOrder

BAUMER

Code fabriquant : 11190720

Code AUDIN : A0278619

Disponible sous 10 jours

Adaptateur hygiénique; Raccord de l’instrument : G 1/2 A hygiénique BCID (A03); Raccord process : - ISO 2852 (Tri-Clamp), DN 25, Ø 50.5- DIN 32676-B (Tri-Clamp), DN 26.9, Ø 50.5- DIN 32676-C (Tri-Clamp), DN 1", Ø 50.5- ISO 2852 (Tri-Clamp), 33.7; 38, Ø 50.5- DIN 32676-A (Tri-Clamp), DN 32; 40, Ø 50.5- DIN 32676-B (Tri-Clamp), DN33.7, Ø 50.5- DIN 32676-C (Tri-Clamp), DN 1 1/2", Ø 50.5; BCID raccord process : C03, C04; Matériau : AISI 316L (1.4404); Rugosité de surface max. : Ra = 0,8 µm; Pression max. : 40 bar; Homologations : 3-A, EHEDG

179g

Ajouter au Panier

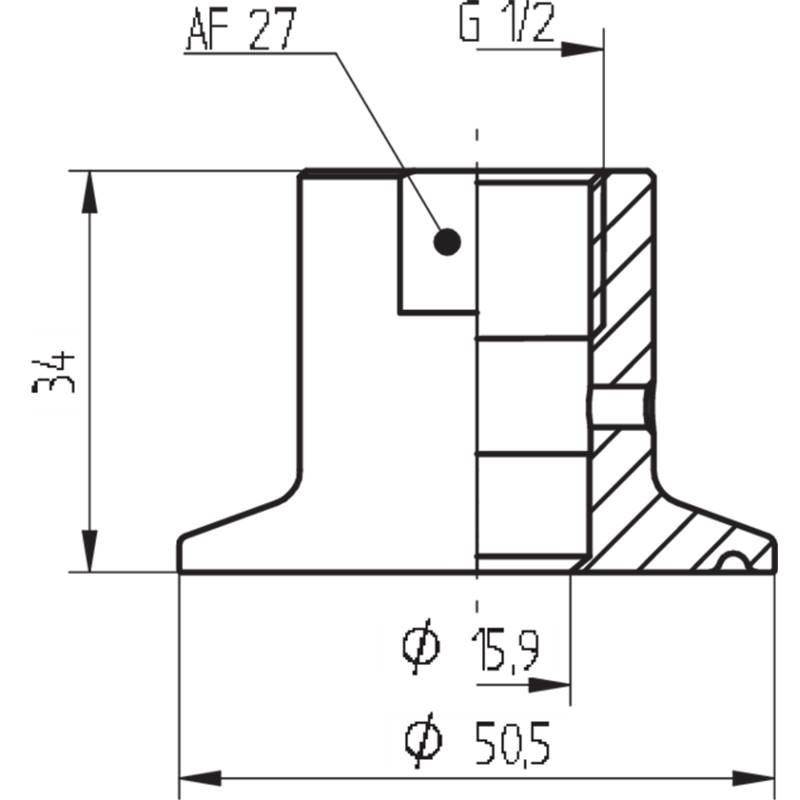

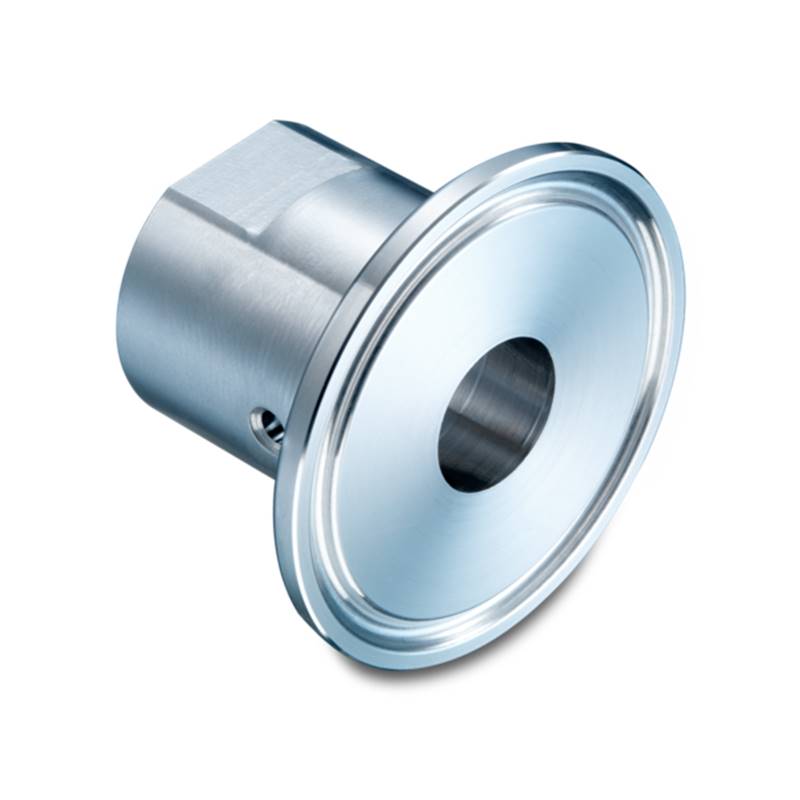

Adaptateur hygiénique
• Raccord de l’instrument: G 1/2 A hygiénique BCID (A03)
• Raccord process:
- ISO 2852 (Tri-Clamp), DN 25, Ø 50.5
- DIN 32676-B (Tri-Clamp), DN 26.9, Ø 50.5
- DIN 32676-C (Tri-Clamp), DN 1", Ø 50.5
- ISO 2852 (Tri-Clamp), 33.7; 38, Ø 50.5
- DIN 32676-A (Tri-Clamp), DN 32; 40, Ø 50.5
- DIN 32676-B (Tri-Clamp), DN33.7, Ø 50.5
- DIN 32676-C (Tri-Clamp), DN 1 1/2", Ø 50.5
• BCID raccord process: C03, C04
• Matériau: AISI 316L (1.4404)
• Rugosité de surface max.: Ra = 0,8 µm
• Pression max.: 40 bar
• Homologations: 3-A, EHEDG
